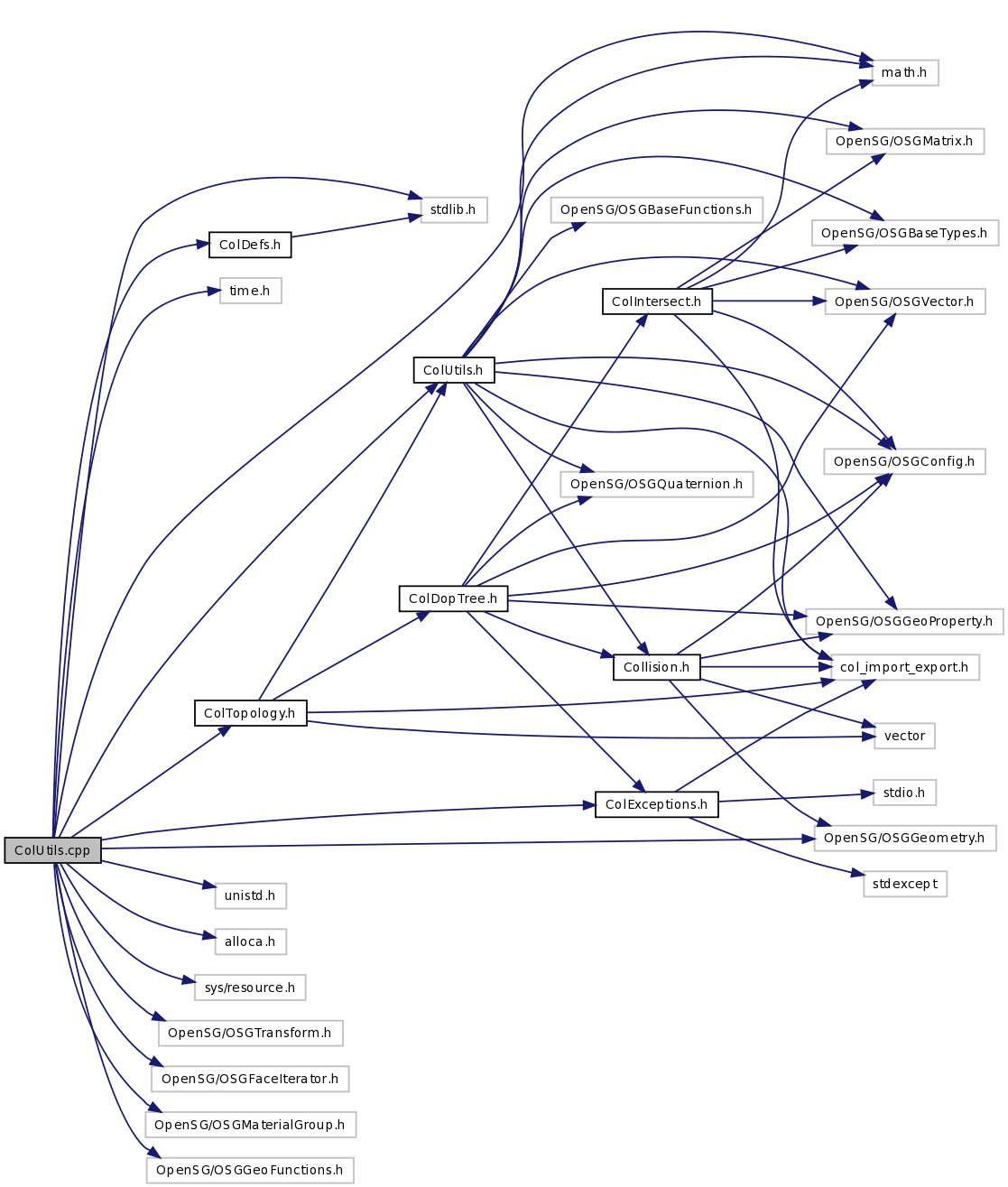

Include dependency graph for ColUtils.cpp:
Namespaces | |
| namespace | col |
Classes | |
| struct | col::lessByAngle |
| Compare points by angle. More... | |
| struct | col::sBF |
| contains some state across different invocations of addFace() More... | |
Random numbers | |
| #define | mod_diff(x, y) ( (x) - (y) & (M_MM-1) ) |
| #define | is_odd(x) ( (x) & 1 ) |
| #define | evenize(x) ( (x) & (M_MM-2) ) |
| double | col::my_drand48 (void) |
| Substitute for the drand48() function under Unix (needed under Windoze). | |
| unsigned int | col::pseudo_random (void) |
| Pseudo random number generator. | |
| float | col::pseudo_randomf (void) |
| Pseudo random number generator. | |
Defines | |
| #define | COL_EXPORT |
| #define | sqr(x) ((x)*(x)) |
| #define | COL_EDGE_EDGE(__V0, __U0, __U1) |
| #define | COL_EDGE_AGAINST_TRI(_V0, _V1, _U0, _U1, _U2) |
| #define | COL_RAY_EDGE_2(succaction) |
Functions | |
Vector, Matrix, and Transformation Math | |
| float | col::operator * (const Vec3f &vec3, const Vec4f &vec4) |
| Several 'vector * vector' and 'vector * point' products. | |
| float | col::operator * (const Pnt3f &pnt, const float vec[3]) |
| This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts. | |
| float | col::operator * (const osg::Vec4f &vec4, const Pnt3f &pnt3) |
| This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts. | |
| float | col::operator * (const Pnt3f &pnt3, const Vec3f &vec3) |
| This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts. | |
| void | col::operator+= (Vec4f &vec4, const Vec3f &vec3) |
| Vec4f += Vec3f. | |
| Pnt3f | col::lincomb (float c1, const Pnt3f &pnt1, float c2, const Pnt3f &pnt2) |
| Affine combination of two points. | |
| void | col::getTransfomUpto (const osg::NodePtr &cur, const osg::NodePtr &upto, osg::Matrix &result) |
| Combine all transformation matrices between two nodes in the graph. | |
| void | col::iterFaces (const osg::NodePtr &node, void(*callback)(const osg::NodePtr &, const osg::GeometryPtr &, const osg::FaceIterator &, void *), void *data) |
| Calls a function for every face in the scenegraph. | |
| void | col::countFaces (const osg::NodePtr &, const osg::GeometryPtr &, const osg::FaceIterator &, void *data) |
| Count the number of faces in a scenegraph. | |
| float | col::dist2 (const Pnt3f &pnt1, const Pnt3f &pnt2) |
| Square distance between 2 points. | |
| float | col::dist (const Pnt3f &pnt1, const Pnt3f &pnt2) |
| Distance between 2 points. | |
| Pnt3f | col::barycenter (const Pnt3f *points, const unsigned int npoints) |
| Average of an array of points. | |
| Pnt3f | col::barycenter (const vector< Pnt3f > &points) |
| This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts. | |
| Pnt3f | col::barycenter (const Pnt3f *points, const unsigned int index[], const unsigned int nindices) |
| Average of an array of indexed points. | |
| Pnt3f | col::barycenter (const osg::MFPnt3f *points, const unsigned int index[], const unsigned int nindices) |
| This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts. | |
| Pnt3f | col::barycenter (const vector< Pnt3f > &points, const TopoFace &face) |
| This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts. | |
| bool | col::collinear (const Vec3f &a, const Vec3f &b) |
| Test if two vectors are collinear. | |
| bool | col::coplanar (const Pnt3f &p0, const Pnt3f &p1, const Pnt3f &p2, const Pnt3f &q0, const Pnt3f &q1, const Pnt3f &q2) |
| Test if two triangles (planes / polygons) are coplanar. | |
| Vec3f | col::operator * (const osg::Matrix &m, const Vec3f &v) |
| Matrix * Vec3f. | |
| Pnt3f | col::mulM3Pnt (const osg::Matrix &m, const Pnt3f &p) |
| Matrix * Pnt3f. | |
| Pnt3f | col::operator * (const osg::Matrix &m, const Pnt3f &p) |
| Matrix * vector. | |
| osg::Matrix | col::operator * (const osg::Matrix &m1, const osg::Matrix &m2) |
| Matrix * matrix. | |
| Vec3f | col::mulMTVec (const osg::Matrix &m, const Vec3f &v) |
| Transposed matrix * Vec3f. | |
| void | col::printMat (const osg::Matrix &m, FILE *file) |
| Print a matrix. | |
| void | col::printPnt (const osg::Pnt3f &p, FILE *file) |
| Print a point. | |
| void | col::dominantIndices (const Vec3f &v, unsigned int *x, unsigned int *y) |
| Dominant coord plane which v is "most orthogonal" to. | |
| void | col::dominantIndices (const Vec3f &v, unsigned int *x, unsigned int *y, unsigned int *z) |
| This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts. | |
| unsigned int | col::dominantIndex (const Vec3f &v) |
| Dominant coord axis which v is "most parallel" to. | |
| Vec3f | col::triangleNormal (const Pnt3f &p0, const Pnt3f &p1, const Pnt3f &p2) |
| Normal of a triangle defined by 3 points. | |
| osg::Matrix | col::axisToMat (const Vec3f &a, float d) |
| Convert a rotation given by axis & angle to a matrix. | |
| unsigned int | col::discretizeOri (osg::Quaternion q, unsigned int r) |
| Convert an orientation (quarternion) into an integer (e.g., index). | |
| void | col::mlerp (OSG::Matrix *intermat, const OSG::Matrix &m1, const OSG::Matrix &m2, float t) |
| Matrix linear interpolation. | |
Geometry | |
| void | col::sortVerticesCounterClockwise (const vector< Pnt3f > &vertex, const Vec3f &normal, TopoFace &face) |
| Sort vertices of a face such that they occur counter clockwise. | |
| osg::NodePtr | col::geomFromPoints (const vector< Pnt3f > &vertex, vector< TopoFace > &face, int gl_type, bool skip_redundant, const Vec3f normals[]) |
| Create a polyhedron from simple vertex and face arrays. | |
| osg::NodePtr | col::geomFromPoints (const Pnt3f vertex[], unsigned int nvertices, unsigned int face[], const unsigned int face_nv[], unsigned int nfaces, int gl_type, bool skip_redundant, const Vec3f normals[]) |
| This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts. | |
| osg::NodePtr | col::makeCube (float radius, int gl_type) |
| Create a cube as OpenSG object. | |
| void | col::getNodeBBox (osg::NodePtr node, float min[3], float max[3]) |
| Get BoundingBox of an osg-node. | |
| osg::GeometryPtr | col::getGeom (const osg::NodePtr node) |
| Return the pointer to the geometry core of the node. | |
| osg::MFPnt3f * | col::getPoints (const osg::NodePtr node) |
| Return the pointer to the multi-field of the points. | |
| osg::MFPnt3f * | col::getPoints (const osg::GeometryPtr geo) |
| This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts. | |
| osg::GeoPositions3fPtr | col::getPositions (const osg::NodePtr node) |
| Return the GeoPositionsPtr of a node. | |
| void | col::calcVertexNormals (const osg::NodePtr node, const float creaseAngle) |
| Calculate vertex normals for all geometries in a subtree. | |
| osg::NodePtr | col::findGeomNode (const osg::NodePtr node) |
| Find the first node that has a geometry. | |
| osg::MaterialPtr | col::findMaterial (const osg::NodePtr node) |
| Return the material a geometry node is being drawn with. | |
| void | col::addFace (const osg::NodePtr &node, const osg::GeometryPtr &geo, const osg::FaceIterator &face, sBF *bf) |
| Add one face to a geometry/node; used by addAllFaces. | |
| void | col::addAllFaces (const osg::NodePtr &root, sBF *bf) |
| Copy all faces in the subtree into one geometry; used by mergeGeom(). | |
| void | col::mergeGeom (const osg::NodePtr &subtree, osg::NodePtr *geonode) |
| Merge all geometries in a subtree into a node. | |
Timers, timing, sleeping, etc. | |
| void | col::sleep (unsigned int microseconds) |
| Sleep n microseconds. | |
| float | col::time (void) |
| Get the user time in milliseconds. | |
Floating-Point Tricks | |
| unsigned int | col::sign (float &x) |
| Returns 0 if x < 0, 0x80000000 otherwise. | |
Misc | |
| bool | col::lockToProcessor (unsigned int processor) |
| Lock the calling process to a certain processor. | |
Intersection Tests | |
| bool | col::isectCoplanarTriangles (const Vec3f &normalV, const Pnt3f &polyVv0, const Pnt3f &polyVv1, const Pnt3f &polyVv2, const Pnt3f &polyUv0, const Pnt3f &polyUv1, const Pnt3f &polyUv2) |
| Checks whether two coplanar triangles intersect. | |
| bool | col::isectCoplanarEdges (const Pnt3f &v0V, const Pnt3f &v1V, const Pnt3f &u0V, const Pnt3f &u1V, unsigned int x, unsigned int y) |
| Checks if the edges intersect in 2D. | |
| void | col::isectEdgePolygon (const Pnt3f &v1, const Pnt3f &v2, const Pnt3f *poly, unsigned int plSize, const Vec3f &normalV, unsigned int x, unsigned int y, bool *isect, bool *oneside) |
| Checks, if edge intersects polygon in 2D. | |
| void | col::isectEdgeTriangle (const Pnt3f &v1, const Pnt3f &v2, const Pnt3f *poly, const Vec3f &normalV, unsigned int x, unsigned int y, bool *isect, bool *oneside) |
| bool | col::pointInPolygon (const Pnt3f &pt, const Pnt3f *poly, unsigned int plSize, unsigned int x, unsigned int y) |
| Check if point is inside polygon. | |
| bool | col::pointInTriangle (const Pnt3f &pt, const Pnt3f &v0, const Pnt3f &v1, const Pnt3f &v2, unsigned int x, unsigned int y) |
| Check whether point is inside triangle. | |
| #define COL_EDGE_AGAINST_TRI | ( | _V0, | |||
| _V1, | |||||
| _U0, | |||||
| _U1, | |||||
| _U2 | ) |
Value:
{ \
/* temporary variables, also for */ \
/* interaction with COL_EDGE_EDGE */ \
float _Ax, _Ay, _Bx, _By, _Cx, _Cy, _EE, _DD, _FF; \
_Ax = _V1 [i] - _V0 [i]; \
_Ay = _V1 [j] - _V0 [j]; \
/* test edge U0,U1 against V0,V1 */ \
COL_EDGE_EDGE(_V0, _U0, _U1); \
/* test edge U1,U2 against V0,V1 */ \
COL_EDGE_EDGE(_V0, _U1, _U2); \
/* test edge U2,U1 against V0,V1 */ \
COL_EDGE_EDGE(_V0, _U2, _U0); \
}
| #define COL_EDGE_EDGE | ( | __V0, | |||
| __U0, | |||||
| __U1 | ) |
Value:
_Bx = __U0 [i] - __U1 [i]; \
_By = __U0 [j] - __U1 [j]; \
_Cx = __V0 [i] - __U0 [i]; \
_Cy = __V0 [j] - __U0 [j]; \
_FF = _Ay * _Bx - _Ax * _By; \
_DD = _By * _Cx - _Bx * _Cy; \
if((_FF > 0 && _DD >= 0 && _DD <= _FF) || \
(_FF < 0 && _DD <= 0 && _DD >= _FF)) \
{ \
_EE = _Ax * _Cy - _Ay * _Cx; \
if(_FF > 0) \
{ \
if(_EE >= 0 && _EE <= _FF) return true; \
} \
else \
{ \
if(_EE <= 0 && _EE >= _FF) return true; \
} \
}
| #define COL_RAY_EDGE_2 | ( | succaction | ) |
Value:
{ \
if ( v1x < px && v2x < px ) \
succaction; \
v1y = v1[y]; \
v2y = v2[y]; \
if ( v1y > py && v2y > py ) \
succaction; \
if ( v1y <= py && v2y <= py ) \
succaction; \
if ( v1x >= px && v2x >= px ) \
{ \
in ++ ; \
succaction; \
} \
y1py = v1y - py; \
x1px = v1x - px; \
y2py = v2y - py; \
x2px = v2x - px; \
if ( y1py >= x1px && y2py >= x2px ) \
succaction; \
if ( (-y1py) >= x1px && (-y2py) >= x2px ) \
succaction; \
\
y1y2 = v1y - v2y; \
t = y1py*(v2x - v1x) + x1px*y1y2; \
if ( (t>0.0f && y1y2 > 0.0f) || (t<0.0f && y1y2 < 0.0f) ) \
in ++ ; \
}
